VDO Temp.giver 120°C M14x1.5

m/alarm 96°

Varenr.: 139021
Produktnr.: V323-803-001-006D.LS
VDO Temp.giver 120°C  M14x1.5 m/alarm 96° VDO Temp.giver 120°C  M14x1.5 m/alarm 96°
2 på eksternt lager
Innen 4 dager
1 110,-
pr. Stk (Inkl. mva)
-+
BeskrivelseTeknisk infoAnmeldelserQ & A
Beskrivelse

Mechanical features:

Temperature measuring range:+40 °C to +120 °C
Minimum - Maximum operating temperature:-40 °C to +150 °C
Thread:M14 x 1.5

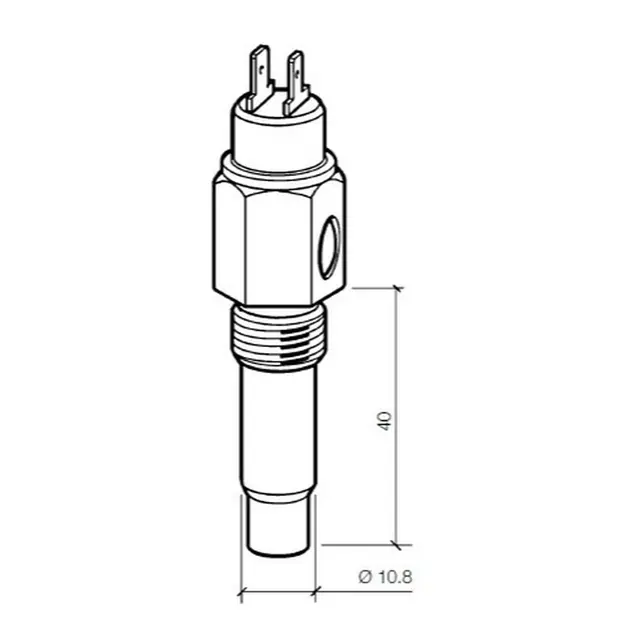

Sender element length + thread (L):40 mm
Sensor diameter:10.8 mm
Torque:20 Nm
Temperature medium:Coolant - Water - Air - Engine oil - Transmission oil - Fuel

Electrical features:

Operating voltage:6 - 24 V DC
Resistor range:287.4 - 22.7 Ohm
Temperature sensor signal:Single-Pole common ground
Warning contact:96 °C ± 3 °C
Warning contact switching capacity:1.2 - 3 Watt non-inductive
Warning contact features:Contact closes with rising temperature

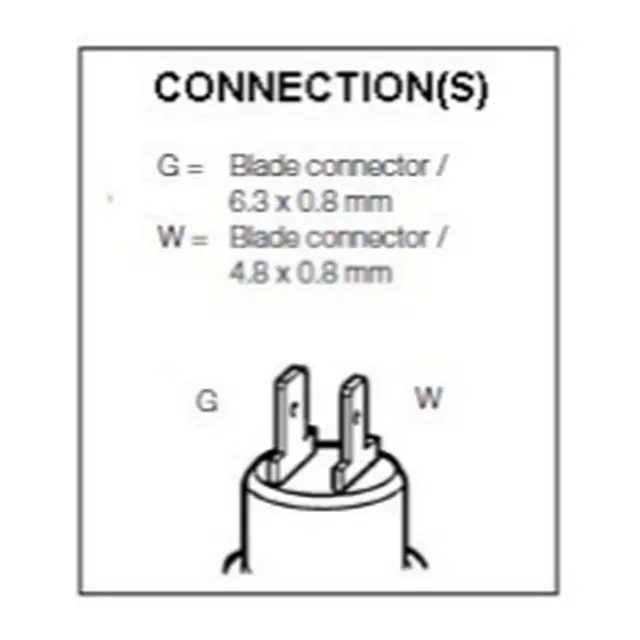

Temperature sender connector:AMP Male 6.3 x 0.8 mm
Warning contact connector:AMP Male 4.8 x 0.8 mm

Datasheets and Tables:

VDO 2014 Vehicle Electronics Catalog:Page 142 - 143
Type of connection:A

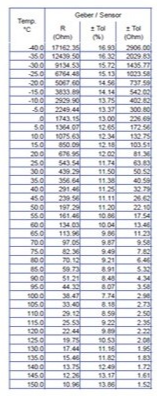

VDO En Du Temperature senders Tables:VDO table: 1
Temperature 100 °C > Resistance:100 °C = 38.47 Ohm ± 2.98 Ohm
