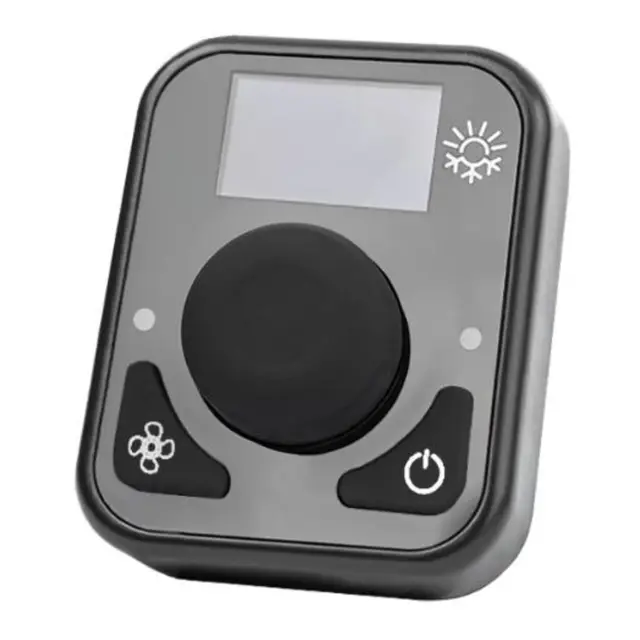

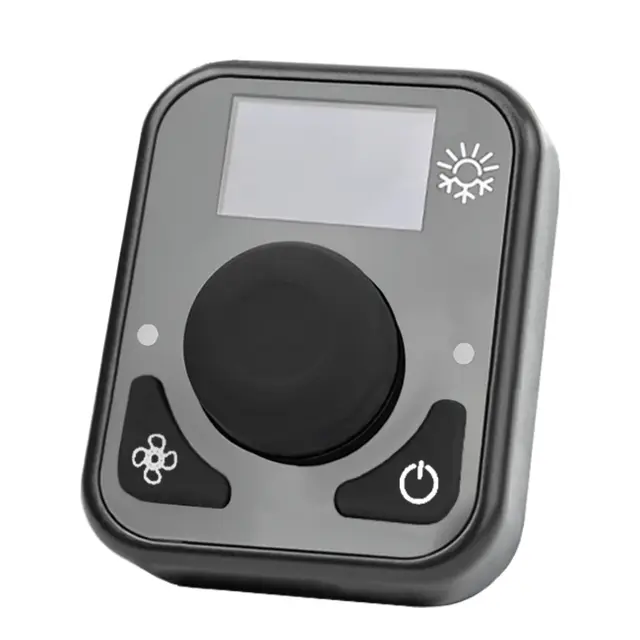

AUTOTERM Mini Control

Name: AUTOTERM Mini Control
Brand: AUTOTERM
SKU: 160720
Price: 799 NOK
Availability: OutOfStock

Varenr.: 160720

Produktnr.: 797

Les mer...

Ikke på lager (bestillingsvare, antatt 3 dager)
Kontakt oss for leveringstid.Ubekreftet (4 stk, 28.11.2026)

799,-

pr. Stk (Inkl. mva)

Beskrivelse

Mini Control er en oppgradert versjon som passer til alle AUTOTERM luftvarmere 12V- og 24V-versjoner. Dette brukervennlige panelet er designet med en enkelt dreieknapp og en liten skjerm, og lar deg justere innstillingene enkelt.

Moduser med luftvarmere: Temperaturmodus*, Varme+ventilasjon*, Effektregulering, Ventilasjon

Krever ekstern temperaturføler:

Teknisk info

“Power mode” (If the external sensor is not connected)	Designed for quickest possible heating of the space; The heater operates continuously at a set power.
“Temperature mode” (If the external sensor is connected)	Heat output decreases as the difference between the desired temperature and the temperature in the space decreases. * The temperature mode for Air 2D 12/24V and 4D 12/24V heaters in the 6355, 6350, 6260, and 6265 series versions have a new algorithm. In this mode, the heater acts normally by lowering power when it gets near the set temperature. However, if it goes past the temperature setpoint, the heater will turn off and wait until the temperature drops by 3 degrees below temperature setpoint before starting again
“Ventilation mode”	Designed for air circulation in the space.
Ventilation during heating” - function (If the external sensor is connected)	Designed to maintain the required temperature in the space; After the required temperature is reached, the space heating is stopped and space air circulation is performed; Controls the space temperature; if the temperature drops below the set point, the heater will start in Ventilation mode.
Pre-Heating Mode	The heater runs for 30 minutes to 8 hours and then shuts off.
Auxiliary Mode	The heater starts together with the vehicle's engine to help reach and maintain optimal working temperature. (For Flow 14D, this function works only with v2 models that have serial numbers starting with 6834, 6858, or newer).
Dimensions	48 x 38 x 22mm
	* Please note, that AUTOTERM air heaters with production date 16.11.2016 or older does not support Ventilation mode. You can check your air heaters AUTOTERM production date on the warranty card. ** Please note, that all AUTOTERM air heaters need external temperature sensor (assy.1458), so that the "Power mode" and "Ventilation during heating” function would work.
