EM-TRAK ProAIS A200 Sender / MottakerKlasse A / Proff / IMO - NMEA200 - Wifi

Varenr.: 137182
Produktnr.: 425-0012.PN
EM-TRAK ProAIS A200 Sender / Mottaker Klasse A / Proff / IMO - NMEA200 - Wifi EM-TRAK ProAIS A200 Sender / Mottaker Klasse A / Proff / IMO - NMEA200 - Wifi EM-TRAK ProAIS A200 Sender / Mottaker Klasse A / Proff / IMO - NMEA200 - Wifi EM-TRAK ProAIS A200 Sender / Mottaker Klasse A / Proff / IMO - NMEA200 - Wifi
3 på eksternt lager
Innen 14 dager
29 875,-
pr. Stk (Inkl. mva)
-+
BeskrivelseTeknisk infoAnmeldelserQ & A
Beskrivelse

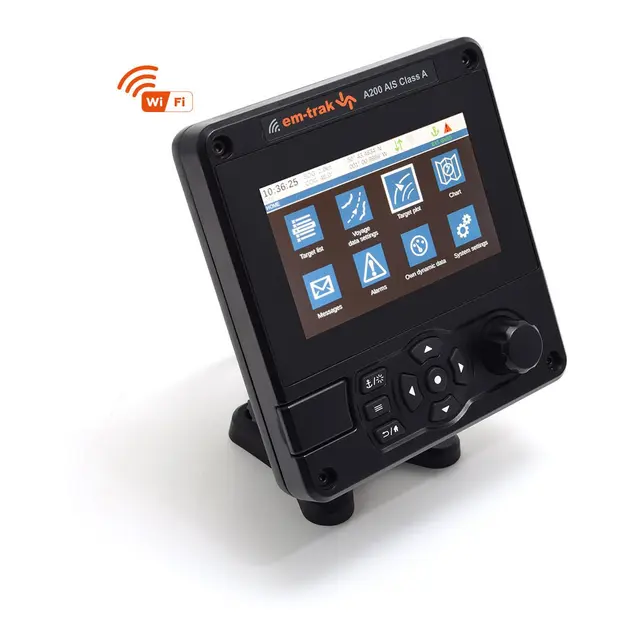

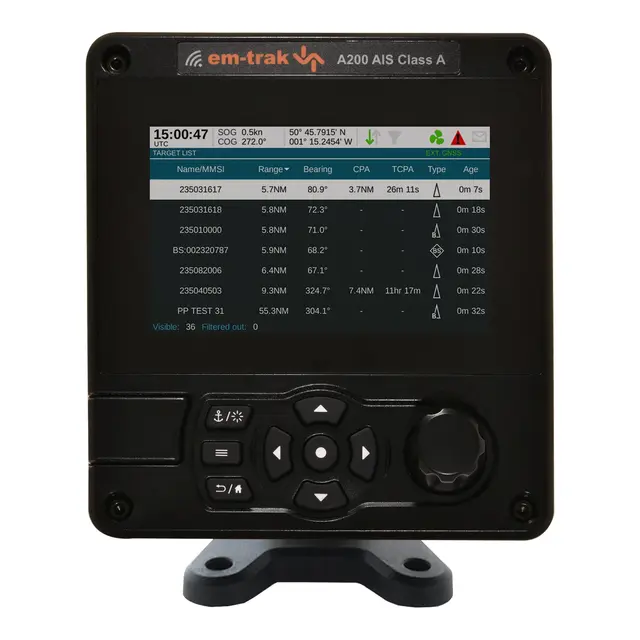

ProAIS A200 system med lekkert fargedisplay og WIFI.


  • Typegodkjent AIS Klasse A system med innebygd WIFI
  • GNSS antenne med 10m kabel (TNC tilkobling)
  • Norsk språk!
  • Fargedisplay (HD)
  • 3x NMEA0183 input (GNSS, RoT, Heading)
  • 3x NMEA0183 i/o (inkl. Pilot Port)
  • NMEA2000
  • Silent mode
  • Robust og vanntett (IP67)
  • 12-24vDC <12w
  • Kartografi – leser  C-MAP MAX, brikketype: micro SD

Egenskaper

  • Sertifisering: IMO

I esken

  • AIS Tranceiver
  • Monteringsbrakett
  • Datakabel – 2 stk (14 way + 18 way)
  • Strømkabel
  • GNSS antenne inkl. kabel
  • Div. skruer
  • Produkt CD og dokumentasjon

Dokumenter


Teknisk info
PHYSICAL AND ENVIRONMENTAL SPECIFICATION
  • Size (w x h x d) – 152 x 165 x 95mm
  • Weight – 1.1kg
  • Operating temperature – -25°C to +55°C
  • Storage temperature – -25°C to +70°C
  • Ingress protection – IPx6 and IPx7


ELECTRICAL SPECIFICATION
  • Supply voltage – 12V or 24V DC
  • Supply voltage range – 9.6V – 31.2V DC
  • Average current (at 12V) – 520mA
  • Peak current – 6A
  • Average power consumption (at 12V) – 6.2W
  • Galvanic isolation – NMEA 0183, NMEA 2000, Power supply, VHF antenna port


CONNECTORS
  • VHF antenna – SO-239
  • GNSS – TNC
  • Power – 2 way circular multipole
  • NMEA 0183/silent mode/blue sign – 14 way circular multipole
  • NMEA 0183/alarm relay – 18 way circular multipole
  • NMEA 2000 – 5 way Micro-C connector


DATA INTERFACES
  • NMEA 0183 – 3 x input ports. 3 x bi-directional ports
  • NMEA 2000 – NMEA 2000 Ed 3.101, LEN=1
  • Wi-Fi – IEEE 802.11 (a/b/g), client and access point mode supported (5 connections in access point mode)


STANDARDS COMPLIANCE
  • AIS standards – IEC 61993-2 Ed. 3
  • Product safety standards – EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013
  • Environmental standards – IEC 60945 Ed. 4
  • Serial data interface standards – IEC 61162-1 Ed 5.0. IEC 61162-2 Ed 1.0
  • NMEA 2000 – NMEA 2000 Ed 3.101
  • GNSS performance standards – IEC 61108-1 Ed 2.0. IEC 61108-02 Ed 1.0


GNSS
  • Systems supported – GPS, GLONASS, BeiDou, Galileo
  • (two of any combination, three including GPS, Galileo)
  • Channels – 72
  • Internal/external antenna – External only
  • Time to first fix from cold start – 26s


VHF TRANSCEIVER
  1. VDL access scheme – SOTDMA
  2. Operating frequency – 156.025MHz – 162.025MHz
  3. Channel bandwidth – 25kHz
  4. Receivers/transmitters – 3 x receivers, 1 x transmitter
  5. AIS receiver sensitivity (20% PER) – -111dBm
  6. AIS transmitter power – 12W (+41dBm)


USER INTERFACE
  • Screen – 5? 800 x 480 full colour LCD
  • Buttons – Rotary encoder for selection and entry, 4 menu keys and 4 direction keys
  • SD card interface – Micro SD card interface for logging and chart cards (not available from em-trak)
  • GNSS ANTENNA
  • Size – 85 x 70mm
  • Weight – 470g
  • Ingress protection – IPx6 and IPx7
  • Mounting – 1 inch 14 TPI pole mount required
