FUSION  XS Series 6,5" 200W høyttaler frontgrill i hvitt eller sort medfølger FUSION  XS Series 6,5" 200W høyttaler frontgrill i hvitt eller sort medfølger FUSION  XS Series 6,5" 200W høyttaler frontgrill i hvitt eller sort medfølger FUSION  XS Series 6,5" 200W høyttaler frontgrill i hvitt eller sort medfølger FUSION  XS Series 6,5" 200W høyttaler frontgrill i hvitt eller sort medfølger

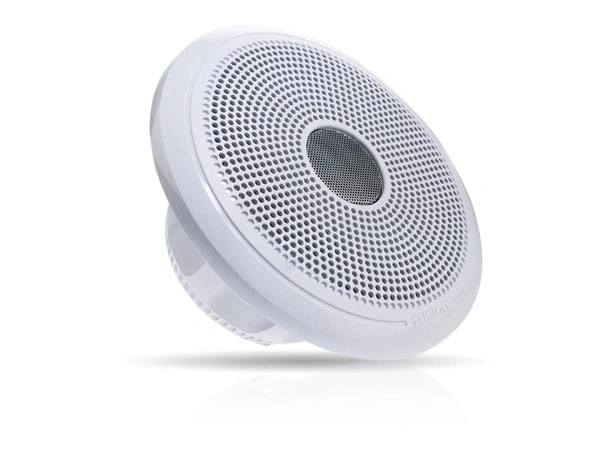

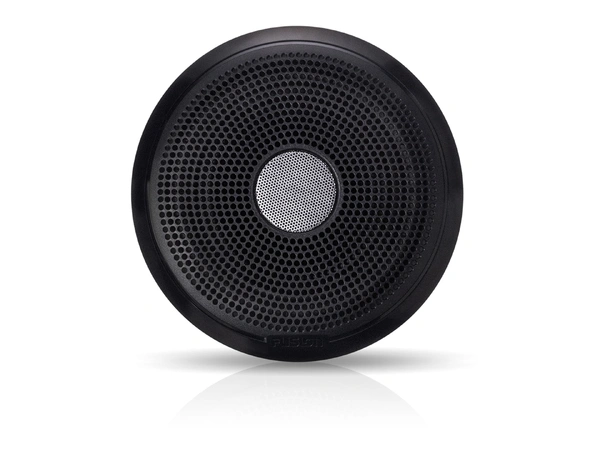

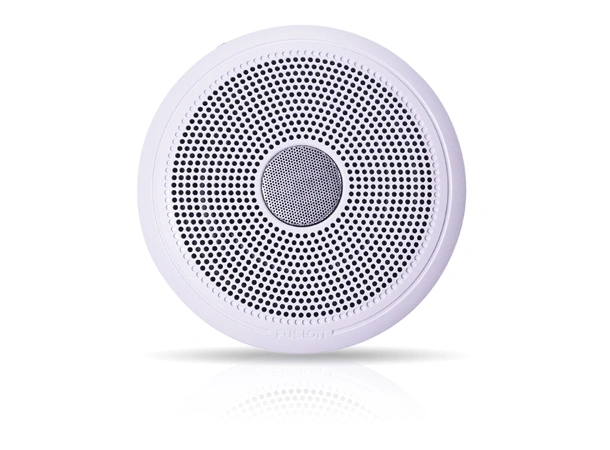

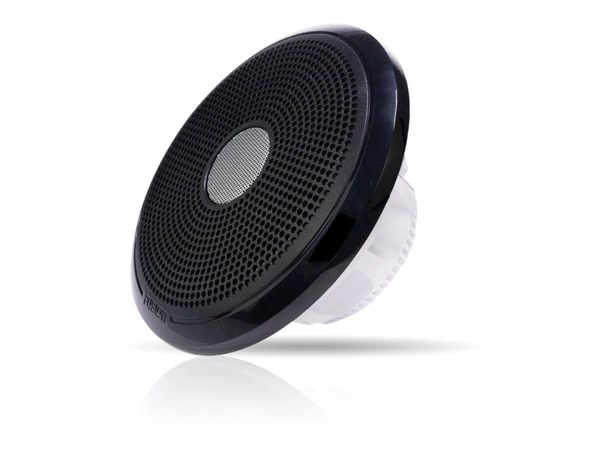

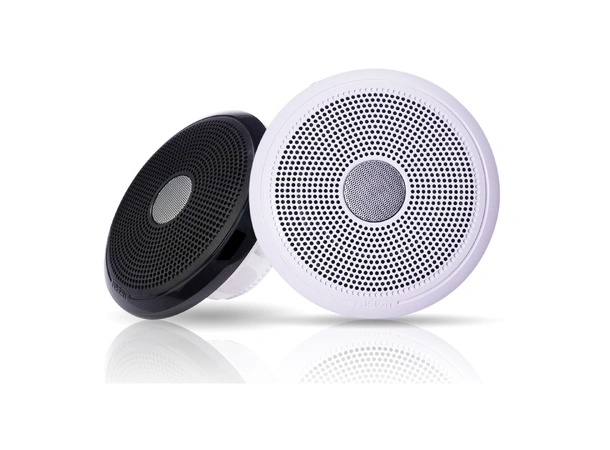

FUSION XS Series 6,5" 200W høyttaler

frontgrill i hvitt eller sort medfølger

Varenr: 134565
Alt. varenr: 010-02196-00.PN
1 690,-
1 799,-Ord. pris
-+
20+ på nettlager (hvorav
  • 1Hovedlager
i butikk, Sarpsborg)
BeskrivelseTeknisk infoKundeanmeldelserAndre kjøpte også
Beskrivelse
Båthøyttaler FUSION XS Series 65 200W høyttaler frontgrill i hvitt eller sort medfølger 0100219600Båthøyttaler FUSION XS Series 65 200W høyttaler frontgrill i hvitt eller sort medfølger 0100219600

DESIGNED AND ENGINEERED TO TRUE-MARINE STANDARDS

Built on the True-Marine design philosophy from Fusion, the XS Series speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog, temperature, vibration and UV.

DESIGNED TO COMPLY WITH ISO12216

Tested to international standards for pressure and water ingress, the XS Series speakers are designed and built to the highest industry standards for quality and robustness.

QUALITY MATERIALS AND ACOUSTIC ENGINEERING

The XS Series speakers incorporate high-quality materials and marine-specific design elements. This communicates not only their enhanced aesthetics but also their ability to reproduce high-performance audio while out on the water.

Båthøyttaler FUSION XS Series 65 200W høyttaler frontgrill i hvitt eller sort medfølger 0100219600Båthøyttaler FUSION XS Series 65 200W høyttaler frontgrill i hvitt eller sort medfølger 0100219600

Engineered for high-performance acoustics.

Båthøyttaler FUSION XS Series 65 200W høyttaler frontgrill i hvitt eller sort medfølger 0100219600

INJECTION-MOLDED POLYPROPYLENE CONE

By using a translucent cone, consistent multi-color illumination is incorporated into the system. It also improves the robustness of the speaker, allowing for clean, clear audio reproduction.

Båthøyttaler FUSION XS Series 65 200W høyttaler frontgrill i hvitt eller sort medfølger 0100219600

ALUMINUM DOME TWEETER

The aluminum dome tweeter provides a smooth upper frequency response and increased efficiency, which delivers crystal-clear music reproduction.

Båthøyttaler FUSION XS Series 65 200W høyttaler frontgrill i hvitt eller sort medfølger 0100219600

OVERHUNG VOICE COIL

The overhung design reduces distortion and increases power and efficiency to deliver a truly high-quality sound experience.

Båthøyttaler FUSION XS Series 65 200W høyttaler frontgrill i hvitt eller sort medfølger 0100219600

FULLY SEALED CROSSOVER COMPONENTS

Fully sealed crossover components provide increased protection from the harsh marine environment. This delivers an improved frequency response at the crossover point for a detailed audio spectrum and a new level of acoustic performance.

Båthøyttaler FUSION XS Series 65 200W høyttaler frontgrill i hvitt eller sort medfølger 0100219600

OPEN BASKET CONSTRUCTION

The optimized open back design allows for extended power handling and versatile mounting options with reduced mounting depth.

Båthøyttaler FUSION XS Series 65 200W høyttaler frontgrill i hvitt eller sort medfølger 0100219600Båthøyttaler FUSION XS Series 65 200W høyttaler frontgrill i hvitt eller sort medfølger 0100219600

Experience a variety of colors to match your audio.

Båthøyttaler FUSION XS Series 65 200W høyttaler frontgrill i hvitt eller sort medfølger 0100219600

MULTI-COLOR RGB LED LIGHTING

The sports-style XS Series speakers provide bright and even LED illumination in a wide range of colors, letting you choose any color to match the mood, set the tone or complement your music to enhance your audio entertainment experience.

Båthøyttaler FUSION XS Series 65 200W høyttaler frontgrill i hvitt eller sort medfølger 0100219600

CONTROLLING THE RGB LIGHTING

Control the color (static or dynamic), brightness, light mode and speed by using the optional MS-RGBRC wireless remote control (sold separately).

Båthøyttaler FUSION XS Series 65 200W høyttaler frontgrill i hvitt eller sort medfølger 0100219600Båthøyttaler FUSION XS Series 65 200W høyttaler frontgrill i hvitt eller sort medfølger 0100219600

Enhanced aesthetics to match modern boat design trends.

Båthøyttaler FUSION XS Series 65 200W høyttaler frontgrill i hvitt eller sort medfølger 0100219600

SPORTS-STYLE SPEAKERS

The XS Series sports-style speakers are available in 6.5” and 7.7” sizes with interchangeable sports white/sports gray grilles and feature multi-color RGB LED lighting options.

Båthøyttaler FUSION XS Series 65 200W høyttaler frontgrill i hvitt eller sort medfølger 0100219600

CLASSIC-STYLE SPEAKERS

The XS Series classic-style speakers are available in 4”, 6.5” and 7.7” sizes with interchangeable classic white/classic black grilles for a timeless, elegantly styled finish to blend in with the aesthetics of your boat.

Båthøyttaler FUSION XS Series 65 200W høyttaler frontgrill i hvitt eller sort medfølger 0100219600Båthøyttaler FUSION XS Series 65 200W høyttaler frontgrill i hvitt eller sort medfølger 0100219600

Superior sound quality with Fusion DSP and Apollo™ Series.

1Available only on sports-style XS Series speakers
2Available only on 6.5” and 7.7” XS Series speakers

I esken

4" 120-watt Classic Marine Speaker

  • One pair of XS-F40CWB speakers
  • 12 Phillips stainless steel mounting screws (3.5 mm x 25.4 mm (6 gauge x 1”))
  • Speaker grilles (1 classic white/1 classic black)
  • Documentation

6.5" 200-watt Sports Marine Speaker with RGB LED Lighting

  • One pair of XS-FL65SPGW speakers
  • 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1”))
  • Speaker grilles (1 sports gray/1 sports white)
  • Documentation

6.5" 200-watt Classic Marine Speaker

  • One pair of XS-F65CWB speakers
  • 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1”))
  • Speaker grilles (1 classic white/1 classic black)
  • Documentation

7.7" 240-watt Sports Marine Speaker with RGB LED Lighting

  • One pair of XS-FL77SPGW speakers
  • 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1”))
  • Speaker grilles (1 sports gray/1 sports white)
  • Documentation

7.7" 240-watt Classic Marine Speaker

  • One pair of XS-F77CWB speakers
  • 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1”))
  • Speaker grilles (1 classic white/ 1 classic black)
  • Documentation

Dokumenter


Teknisk info

General

Physical dimensions (Diameter x Depth) 7.7" Classic: 7.72" x 3.70" (196 x 94 mm)
7.7" Sports: 7.72" x 3.82" (196 x 97 mm)
6.5" Classic: 6.97" x 3.19" (177 x 81 mm)
6.5" Sports: 6.97" x 3.27" (177 x 83 mm)
4" Classic: 5.31" x 2.68" (135 x 68 mm)
Water and dust rating IP65
Configuration Coaxial
Speaker size XS-F77CWB / XS-FL77SPGW: 7.7"
XS-F65CWB / XS-FL65SPGW: 6.5"
XS-F40CWB: 4"
Peak power (Watts) 7.7" Speaker: 240 W
6.5" Speaker: 200 W
4" Speaker: 120 W
RMS power (Watts) 7.7" Speaker: 60 W
6.5" Speaker: 50 W
4" Speaker: 30 W
Sensitivity (1 W / 1 m) 7.7" Speaker: 92 dB
6.5" Speaker: 91 dB
4" Speaker: 87 dB
Frequency response 7.7" Speaker: 70 Hz-18 kHz
6.5" Speaker: 80 Hz-18 kHz
4" Speaker: 100 Hz-18 kHz
Nominal impedance 4 ohms
Recommended amplifier power (RMS) 7.7" Speaker: 25-200 W/Ch
6.5" Speaker: 20-150 W/Ch
4" Speaker: 15-80 W/Ch
LED lighting yes (RGB; sports-style only)
LED Supply Voltage 10.8-16 VDC (sports-style only)
LED load current @ 14.4 VDC 150 mA (sports-style only)
Operating temperature range 32° to 122° F (0° to 50° C)
Voice coil diameter 7.7": 1.18"
6.5": 1.18"
4": 1"
Cone material 7.7" / 6.5": Polypropylene cone with cloth surround
4": Polypropylene cone with rubber surround
Tweeter type Aluminum dome
Compass-safe distance 7.7": 157.5" (400 cm)
6.5": 122" (310 cm)
4": 100.5" (255 cm)
Warranty 3 years

Mounting Dimensions

Mounting diameter clearance 7.7": 6.38" (162 mm)
6.5": 5.31" (135 mm)
4": 3.90" (99 mm)
Mounting depth clearance 7.7": 3.03" (77 mm)
6.5": 2.64" (67 mm)
4": 2.13" (54 mm)

Optimum Enclosure Recommendations

Sealed enclosure volume1 7.7": 0.35 cubic ft (10 L)
6.5": 0.28 cubic ft (8 L)
4": 0.14 cubic ft (4 L)

1Fully filled with absorption material

EAN 0753759221409
Forpakningsvekt 0,2 kg

Produktinformasjon

Type Fulltone (standard)
Farge
  • Hvit
  • Sort
Størrelse 6,5"
Format Sirkulær
Serie XS-Serie
Effekt 200 W
Montering Innfelt
