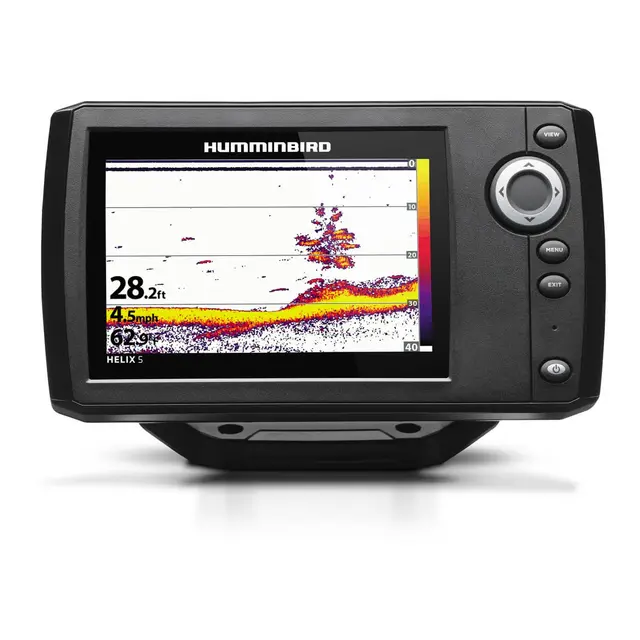

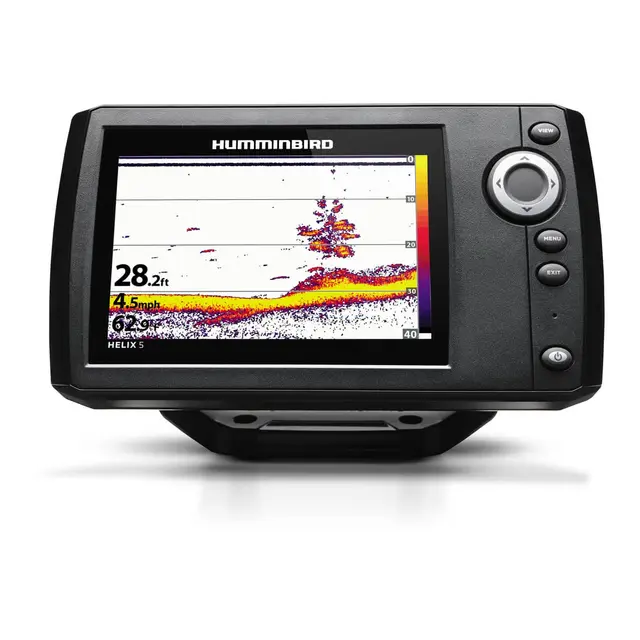

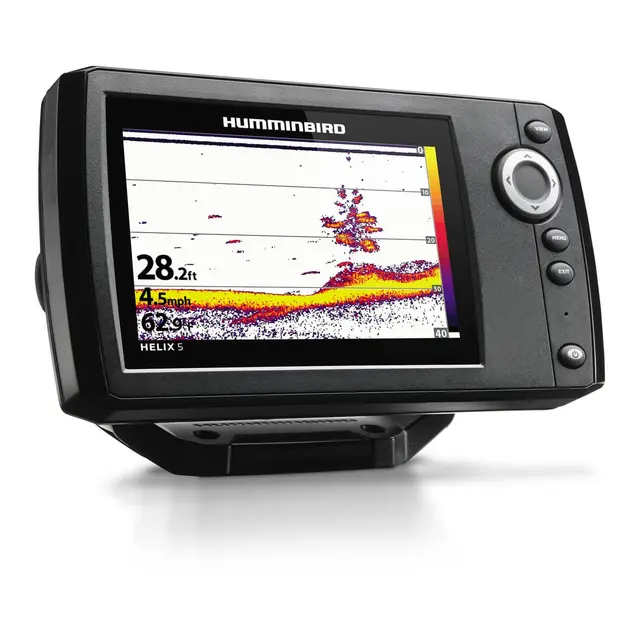

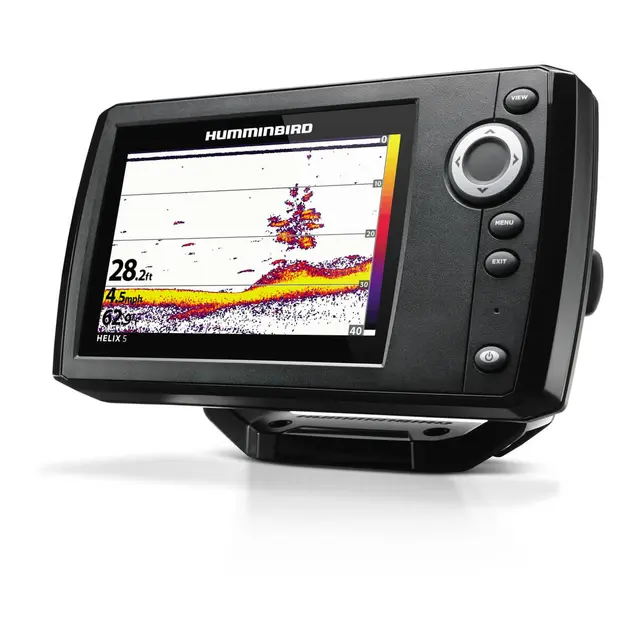

Helix®5 Sonar G2 gir fiskeren bred 5’’ HD-skjerm med forståelige menyer og et enkelt brukergrensesnitt.

Her får du kontroll over alt under deg, og med flere visningsmodus kan du velge detaljer som dybde, temperatur og strømninger under vann.

Dual Beam PLUS™ gir deg to stråler, en smal og en bred, med gode detaljer av fisk og bunnforhold.

• Generasjon 2
• Display Size: Diagonal 5
• Display Pixel Matrix: 800H x 480V
• Sonar-Standard: DualBeam PLUS
• Sonar-Frequencies Supported: 83/200 kHz
• Depth-Sonar: 460m/1500 ft (standard transducer)
• Interface: Keypad Control
• Memory Card Slot: None
• Power Draw: 650 mA
• Power Input: 10.8-20 VDC
• Power Output Peak-to-Peak: 4000 Watts
• Power Output RMS: 500 Watts
• Screen Snap Shot: Not Supported
• Sonar Recording: Not Supported

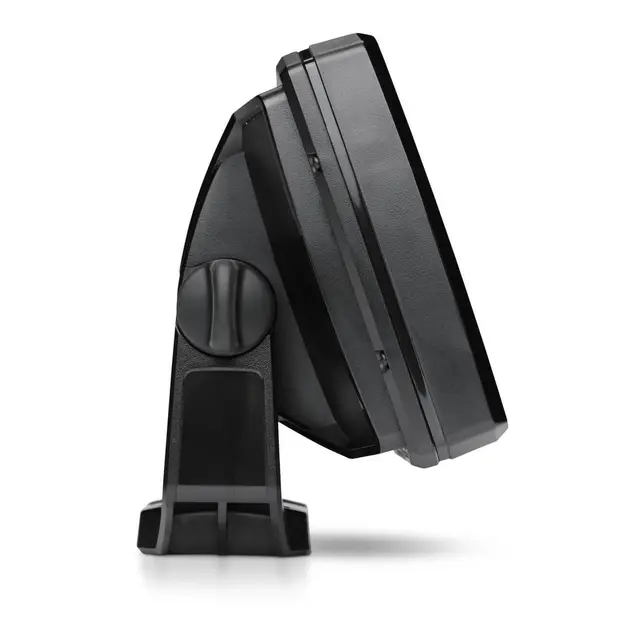

• Mount-Standard: Gimbal
• Mount-Standard Size: 19cm B x 12cm H x 8,4 D
• Mount-Optional: In-Dash Mounting Kit
• Mount-Optional Size: 19cm B x 10,9cm H x 2,9cm D
• Transducer Included: XNT 9 20 T
• Transducer Mount Location: Akter
• GPS Chartplotting: Not Supported
• GPS Receiver: Optional
• GPS Trackplotting: Not Supported
• Humminbird Varenummer: 410190-1

• 360 Imaging Compatibility: No
• Humminbird Basemap: Not Supported
• LakeMaster Compatibility: No
• Minn Kota i-Pilot Link Compatibility: No
• Minn Kota Talon Shallow Water Anchor Compatibility: No
• Navionics Gold/HotMaps Compatibility: No
• Navionics Platinum + Compatibility: No
• Platinum Compatibility: No
• Radar Compatibility: No
• 5-Port Ethernet Switch Compatibility: No
• AIS Compatibility: Not Supported
• Heading Sensor GPS Compatibility: No
• NMEA2000: Not Supported
• Target Separation: 6,4cm
• Upgradable Software: Yes
• View Preset Keys: Yes
• X-Press Menu System: Yes
• Custom Digital Readout: Yes
• Custom View Selections: Yes
• Display Colors Grayscale: 16-Bit
• Display Type: Color TFT
• Temperature: Built In
• Temperature Alarm: Yes
• Temperature Graph: No
