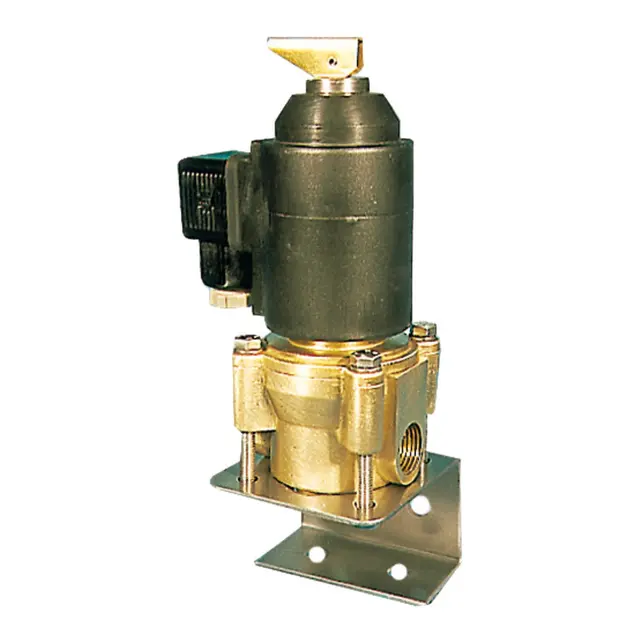

Made according to directive 2013/53/EU (ISO 8846 MARINE - EN 28846) for fuel shut-off PAOMAR, patented.
Technical specifications:
1)Remote electric control with emergency manual handle.
2) Actual capacity of 600/hour at 0.2 bar, suitable for any type of engine (even low displacement engines during acceleration require 3 or 4 times as much fuel of what is normally required for standard operation).
3) Control mechanism not in contact with fuel. 100% watertight, even after many years of operation (no O-rings, no sliding parts).
4) Fitted with new universal 12-24 volt connector with current saving electronic circuit.
5) LED operation indicator. .
6)Protection against polarity inversion.
7) Electronic circuit with buffer impulse which ensures activation in case of the electro-valve unwanted release.
8) Suitable for many type of connectors, stainless steel mounting bracket included for installation in several positions.
- Power V: 24
- Copper tube fittings 8x10 mm: 17.408.04
- Copper tube fittings 10x12 mm: 17.402.51
- Rubber tube fittings 10x21 mm: 17.402.60
