EC TYPE EXAMINATION CERTIFICATE
No.CCE23599/1
Appendix - page 1/1

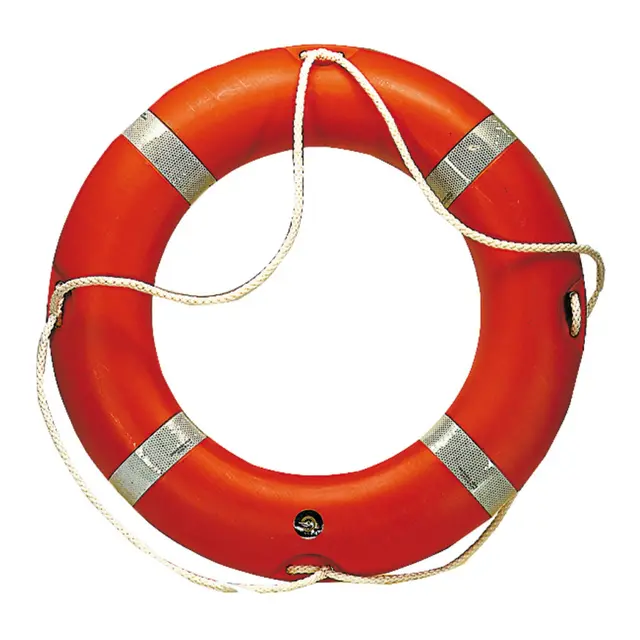

TECHNICAL DATA
Outer diameter: 750 +/- 2 mm Inner diameter: 447 +/- 2 mm: Elliptical section:
major axis: 150 +/- 2 mm minor axis: 110 +/- 2.mm
Mass of the lifebuoy: 3050 +/- 100 g
Materials:
-
Shell made with High Density Polyethylene
- Buoyancy material: DUNAPOL C 035 HA
Grabline made with a braid polyethylene dia 10 mm.
____________TECHNICAL DOCUMENTATION EXAMINATION
Technical specification dated 4gust 1997
Test report: Report no. 97 DGITA
CHANGE VALIDITY CONDITIONS
Maximum installation height: 40 m.
This lifebuoy is not intended to operate the quick-release arrangement for the self-activated smoke signal self-igniting light.
