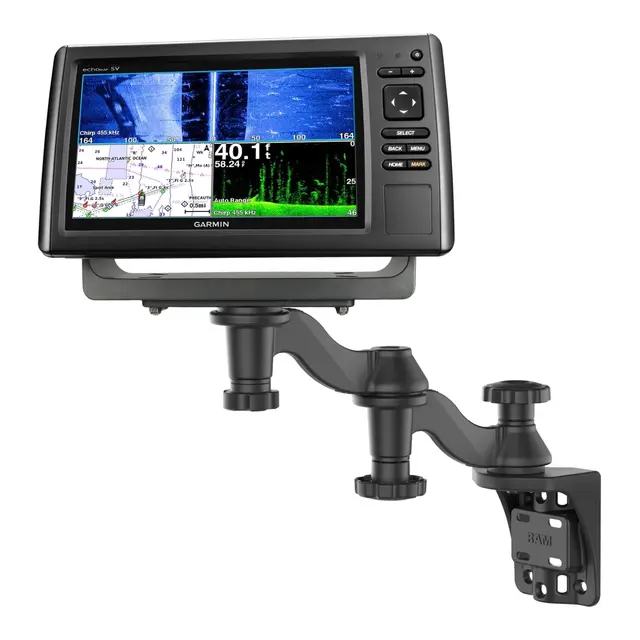

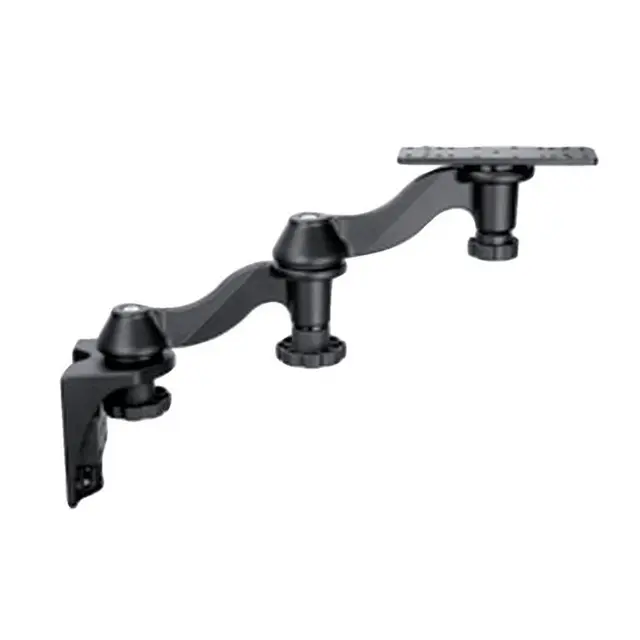

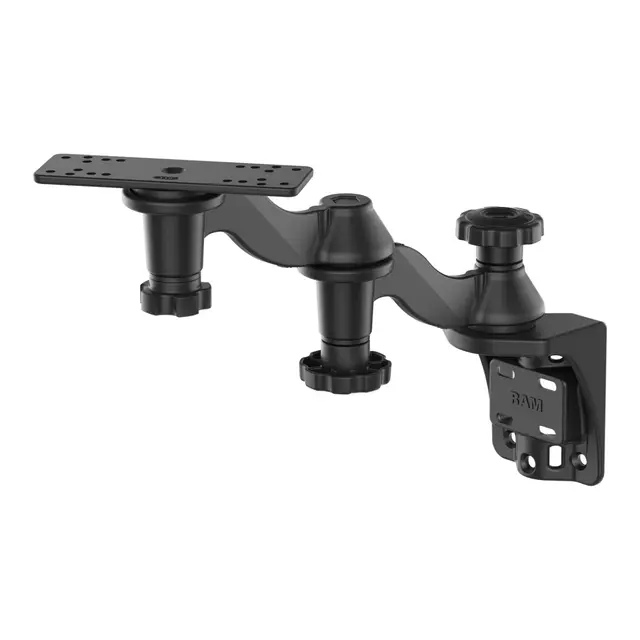

The RAM double swing arm mount includes two 6" long bent swing arms mounted on a vertical surface mounting base. At the end of the device mount is a rectangular 6.25 x 2" top base. The pivoting points of the mount allow a complete 360 degree rotation.
| product dimensions | Overall Height: 11.58"
Total Swing Arm Length: 12" |

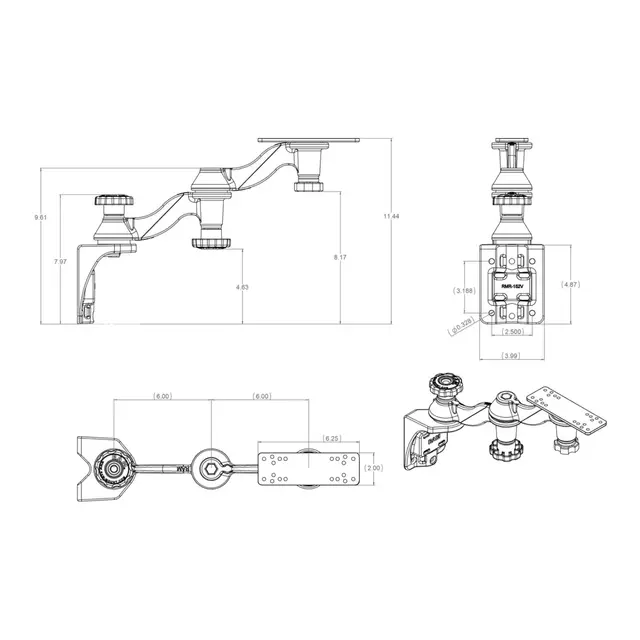

| hole pattern | See Drawing |
| plate size | Top Plate: 6.25" x 2"
Bottom Plate: 3.97" x 4.85" |
| weight capacity | 8 lbs |
| materials | Marine-grade aluminum |
| packaging type | Poly Bag |
| Weight | 1.769 kg |
| Additional Information | The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device. |
