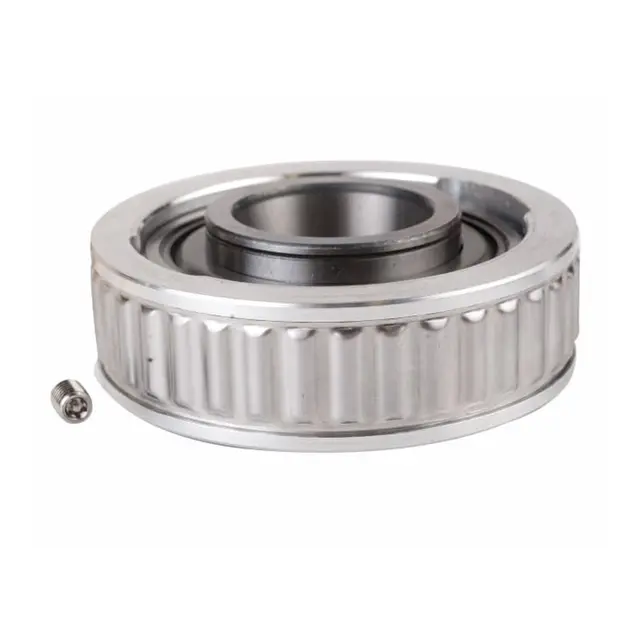

GIMBAL LAGER TIL ALPHA OG BRAVO DREV PASSERS: MC-1, R, MR OG ALPHA (1974-97), GEN II (1991-97), BRAVO I/II/III (1988-95) ERST: 30-879194A02.

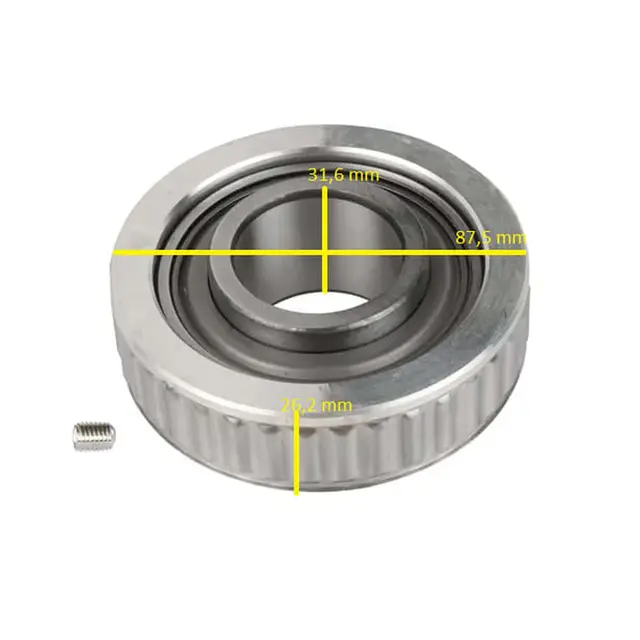

UTV DIA : 87,5 mm
INV DIA : 34.9 mm
Ikke smørbart !!
| 120/140 | 1978-1978 | | 4893635 THRU 6225576 | |
| 120/140 | 1980-1980 | | 4893635 THRU 6225576 | |
| 120/140 | 1976-1976 | | 2791957 THRU 4893634 | |
| 120/140 | 1981-1981 | | 4893635 THRU 6225576 | |
| 120/140 | 1972-1972 | | 2791957 THRU 4893634 | |
| 120/140 | 1974-1974 | | 2791957 THRU 4893634 | |
| 120/140 | 1971-1971 | | 2791957 THRU 4893634 | |
| 120/140 | 1973-1973 | | 2791957 THRU 4893634 | |
| 120/140 | 1982-1982 | | 4893635 THRU 6225576 | |
| 120/140 | 1975-1975 | | 2791957 THRU 4893634 | |
| 120/140 | 1979-1979 | | 4893635 THRU 6225576 | |
| 120/140 | 1970-1970 | | 2791957 THRU 4893634 | |
| 120/140 | 1977-1977 | | 2791957 THRU 4893634 | |
| 165 | 1976-1976 | | 2763442 THRU 4890459 | |
| 165 | 1980-1980 | | 4890460 & UP | |
| 165 | 1981-1981 | | 4890460 & UP | |
| 165 | 1973-1973 | | 2763442 THRU 4890459 | |
| 165 | 1974-1974 | | 2763442 THRU 4890459 | |
| 165 | 1971-1971 | | 2763442 THRU 4890459 | |
| 165 | 1972-1972 | | 2763442 THRU 4890459 | |
| 165 | 1978-1978 | | 4890460 & UP | |
| 165 | 1979-1979 | | 4890460 & UP | |
| 165 | 1970-1970 | | 2763442 THRU 4890459 | |
| 165 | 1977-1977 | | 2763442 THRU 4890459 | |
| 165 | 1975-1975 | | 2763442 THRU 4890459 | |
| 225-S | 1974-1974 | | 3856268 THRU 4200499 | |
| 228 | 1982-1982 | | 4898730 THRU 6225576 | |
| 228 | 1979-1979 | | 4898730 THRU 6225576 | |
| 228 | 1978-1978 | | 4898730 THRU 6225576 | |
| 228 | 1980-1980 | | 4898730 THRU 6225576 | |
| 228 | 1981-1981 | | 4898730 THRU 6225576 | |
| 233 | 1976-1976 | | 4200500 & UP | |
| 233 | 1977-1977 | | 4200500 & UP | |
| 233 | 1975-1975 | | 4200500 & UP | |
| 250 | 1977-1977 | | 4791300 THRU 4898729 | |
| 260 | 1981-1981 | | 4898730 THRU 6225576 | |
| 260 | 1978-1978 | | 4898730 THRU 6225576 | |
| 260 | 1980-1980 | | 4898730 THRU 6225576 | |
| 260 | 1982-1982 | | 4898730 THRU 6225576 | |
| 260 | 1979-1979 | | 4898730 THRU 6225576 | |
| 470 | 1979-1979 | | 4893835 THRU 6225576 | |
| 470 | 1980-1980 | | 4893835 THRU 6225576 | |
| 470 | 1976-1976 | | 4208730 THRU 4893934 | |
| 470 | 1977-1977 | | 4208730 THRU 4893934 | |
| 470 | 1981-1981 | | 4893835 THRU 6225576 | |
| 470 | 1982-1982 | | 4893835 THRU 6225576 | |
| 470 | 1978-1978 | | 4893835 THRU 6225576 | |
| 485 | 1980-1980 | | 4893835 & UP | |
| 485 | 1982-1982 | | 4893835 & UP | |
| 485 | 1981-1981 | | 4893835 & UP | |
| 888 | 1974-1974 | | 3106717 & UP | |
| 888 | 1976-1976 | | 3106717 & UP | |
| 888 | 1971-1971 | | 3106717 & UP | |
| 888 | 1972-1972 | | 3106717 & UP | |
| 888 | 1977-1977 | | 3106717 & UP | |
| 888 | 1973-1973 | | 3106717 & UP | |
| 888 | 1975-1975 | | 3106717 & UP | |
| 898 | 1982-1982 | | 4898730 THRU 6225576 | |
| 898 | 1979-1979 | | 4898730 THRU 6225576 | |
| 898 | 1980-1980 | | 4898730 THRU 6225576 | |
| 898 | 1981-1981 | | 4898730 THRU 6225576 | |
| 898 | 1978-1978 | | 4898730 THRU 6225576 | |
| 898/228 | 1977-1977 | | 4782330 THRU 4898729 | |
| ALPHA ONE GEN.II | 1992-1992 | | 0D469859 THRU 0F679999 | |
| ALPHA ONE GEN.II | 1994-1994 | | 0D469859 THRU 0F679999 | |
| ALPHA ONE GEN.II | 1995-1995 | | 0D469859 THRU 0F679999 | |
| ALPHA ONE GEN.II | 1991-1991 | | 0D469859 THRU 0F679999 | |
| ALPHA ONE GEN.II | 1993-1993 | | 0D469859 THRU 0F679999 | |
| BLACKHAWK | 1994-1994 | | ALL | |
| BLACKHAWK | 1995-1995 | | ALL | |
| BRAVO ONE | 1989-1989 | | 0B664190 THRU 0F729999 | |
| BRAVO ONE | 1997-1997 | | 0F730000 THRU 0M100000 | |
| BRAVO ONE | 1990-1990 | | 0B664190 THRU 0F729999 | |
| BRAVO ONE | 1998-1998 | | 0F730000 THRU 0M100000 | |
| BRAVO ONE | 1992-1992 | | 0B664190 THRU 0F729999 | |
| BRAVO ONE | 1995-1995 | | 0B664190 THRU 0F729999 | |
| BRAVO ONE | 1993-1993 | | 0B664190 THRU 0F729999 | |
| BRAVO ONE | 1991-1991 | | 0B664190 THRU 0F729999 | |
| BRAVO ONE | 1988-1988 | | 0B664190 THRU 0F729999 | |
| BRAVO ONE | 1994-1994 | | 0B664190 THRU 0F729999 | |
| BRAVO ONE | 1996-1996 | | 0F730000 THRU 0M100000 | |
| BRAVO ONE | 1998-1998 | | 0M100001 THRU 0W249999 | |
| BRAVO ONE | 1998-1998 | | 0W250000 & UP | |
| BRAVO THREE | 1994-1994 | | 0B664190 THRU 0F729999 | |
| BRAVO THREE | 1988-1988 | | 0B664190 THRU 0F729999 | |
| BRAVO THREE | 1991-1991 | | 0B664190 THRU 0F729999 | |
| BRAVO THREE | 1996-1996 | | 0F730000 THRU 0M100000 | |
| BRAVO THREE | 1998-1998 | | 0M100001 THRU 0W249999 | |
| BRAVO THREE | 1998-1998 | | 0W250000 & UP | |
| BRAVO THREE | 1989-1989 | | 0B664190 THRU 0F729999 | |
| BRAVO THREE | 1990-1990 | | 0B664190 THRU 0F729999 | |
| BRAVO THREE | 1995-1995 | | 0B664190 THRU 0F729999 | |
| BRAVO THREE | 1997-1997 | | 0F730000 THRU 0M100000 | |
| BRAVO THREE | 1998-1998 | | 0F730000 THRU 0M100000 | |
| BRAVO THREE | 1992-1992 | | 0B664190 THRU 0F729999 | |
| BRAVO THREE | 1993-1993 | | 0B664190 THRU 0F729999 | |
| BRAVO TWO | 1993-1993 | | 0B664190 THRU 0F729999 | |
| BRAVO TWO | 1990-1990 | | 0B664190 THRU 0F729999 | |
| BRAVO TWO | 1998-1998 | | 0F730000 THRU 0M100000 | |
| BRAVO TWO | 1998-1998 | | 0W250000 & UP |
| BRAVO TWO | | | | |
| BRAVO TWO | 1995-1995 | | 0B664190 THRU 0F729999 | |
| BRAVO TWO | 1997-1997 | | 0F730000 THRU 0M100000 | |
| BRAVO TWO | 1991-1991 | | 0B664190 THRU 0F729999 | |
| BRAVO TWO | 1998-1998 | | 0M100001 THRU 0W249999 | |
| BRAVO TWO | 1988-1988 | | 0B664190 THRU 0F729999 | |
| BRAVO TWO | 1994-1994 | | 0B664190 THRU 0F729999 | |
| BRAVO TWO | 1996-1996 | | 0F730000 THRU 0M100000 | |
| BRAVO TWO | 1993-1993 | | 0B664190 THRU 0F729999 | |
| R/MR/ALPHA ONE (STERNDRIVE) | 1987-1987 | | 6225577 THRU 0D469858 | |
| R/MR/ALPHA ONE (STERNDRIVE) | 1989-1989 | | 6225577 THRU 0D469858 | |
| R/MR/ALPHA ONE (STERNDRIVE) | 1984-1984 | | 6225577 THRU 0D469858 | |
| R/MR/ALPHA ONE (STERNDRIVE) | 1986-1986 | | 6225577 THRU 0D469858 | |
| R/MR/ALPHA ONE (STERNDRIVE) | 1988-1988 | | 6225577 THRU 0D469858 | |
| R/MR/ALPHA ONE (STERNDRIVE) | 1983-1983 | | 6225577 THRU 0D469858 | |
| R/MR/ALPHA ONE (STERNDRIVE) | 1990-1990 | | 6225577 THRU 0D469858 | |
| R/MR/ALPHA ONE (STERNDRIVE) | 1985-1985 | | 6225577 THRU 0D469858 | |
| R/MR/ALPHA ONE (TRANSOM ASSEMBLY) | 1983-1983 | | 6216687 THRU 0D469858 | |
| R/MR/ALPHA ONE (TRANSOM ASSEMBLY) | 1985-1985 | | 6216687 THRU 0D469858 | |
| R/MR/ALPHA ONE (TRANSOM ASSEMBLY) | 1988-1988 | | 6216687 THRU 0D469858 | |
| R/MR/ALPHA ONE (TRANSOM ASSEMBLY) | 1990-1990 | | 6216687 THRU 0D469858 | |
| R/MR/ALPHA ONE (TRANSOM ASSEMBLY) | 1984-1984 | | 6216687 THRU 0D469858 | |
| R/MR/ALPHA ONE (TRANSOM ASSEMBLY) | 1986-1986 | | 6216687 THRU 0D469858 | |
| R/MR/ALPHA ONE (TRANSOM ASSEMBLY) | 1987-1987 | | 6216687 THRU 0D469858 | |
| R/MR/ALPHA ONE (TRANSOM ASSEMBLY) | 1989-1989 |
