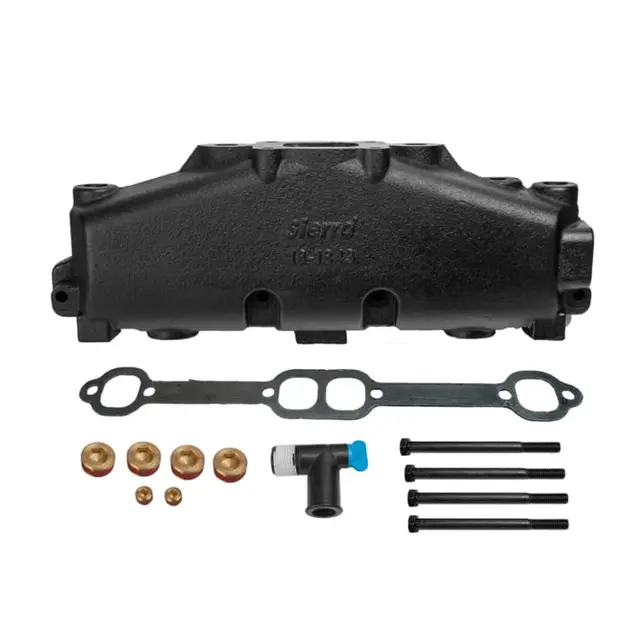

Eksosmanifold med monteringsdeler.
For motorer med serienr. 0M600000 og høyere med ny type manifold og kne med utenpåliggende vannkanaler.
Manifold, Dry joint style passer 5.0L MPI, 5.7L MPI, 350 Mag & 6.2L Mag
Erstatter 865735A02, 865049T01, 864308T01
Dry Joint Style
Passer: MCM/MIE GM V-8 (305, 350 & 377 cid) motorer med dry joint eksos (2002 & nyere)
- 18-1845: Exhaust Elbow
- 18-0720: Riser Gasket (Closed)
- 18-0721: Riser Gasket (Open)
- 18-0722: Riser Gasket (Restricted)
- 18-2949: Exhaust Manifold Gasket
| 350 MAG MPI ALPHA/BRAVO | N/A | | 0W060000 THRU 0W309999 | |
| 350 MAG MPI ALPHA/BRAVO | N/A | | 0W310000 THRU 0W649999 | |
| 350 MAG MPI ALPHA/BRAVO | N/A | | 0W650000 THRU 1A299999 | |
| 350 MAG MPI ALPHA/BRAVO | N/A | | 1A300000 THRU 1A611927 | |
| 350 MAG MPI ALPHA/BRAVO | N/A | | 1A611928 THRU 1A623184 | |
| 350 MAG MPI ALPHA/BRAVO | N/A | | 1A623185 & UP | |
| 350 MAG MPI ALPHA/BRAVO | N/A | | 0L010019 THRU 0L339999 | |
| 350 MAG MPI ALPHA/BRAVO | N/A | | 0L331599 THRU 0M299999 | |
| 350 MAG MPI ALPHA/BRAVO | N/A | | 0M300000 THRU 0M599999 | |
| 350 MAG MPI ALPHA/BRAVO | N/A | | 0M600000 THRU 0W059999 | |
| 350 MAG MPI HORIZON ALPHA/BRAVO | N/A | | 0W060000 THRU 0W309999 | |
| 350 MAG MPI HORIZON ALPHA/BRAVO | N/A | | 0W310000 THRU 0W649999 | |
| 350 MAG MPI HORIZON ALPHA/BRAVO | N/A | | 0W650000 THRU 1A299999 | |
| 350 MAG MPI HORIZON ALPHA/BRAVO | N/A | | 0M300000 THRU 0M599999 | |
| 350 MAG MPI HORIZON ALPHA/BRAVO | N/A | | 0M600000 THRU 0W059999 | |
| 350 MAG MPI MIE | N/A | | 0W390000 THRU 0W689999 | |
| 350 MAG MPI MIE | N/A | | 0W690000 THRU 1A089999 | |
| 350 MAG MPI MIE | N/A | | 0L302200 THRU 0M299999 | |
| 350 MAG MPI MIE | N/A | | 0M310000 THRU 0M316999 | |
| 350 MAG MPI MIE | N/A | | 0M317000 THRU 0M398371 | |
| 350 MAG MPI MIE | N/A | | 0M398372 THRU 0W389999 | |
| 350 MAG MPI SKI | N/A | | 0W690000 THRU 1A089999 | |
| 350 MAG MPI SKI | N/A | | 0M300000 THRU 0M316999 | |
| 350 MAG MPI SKI | N/A | | 0M317000 THRU 0W689999 | |
| 357 ALPHA 4V | 2008-2008 | | 1G400000 & UP | |
| 357 ALPHA 4V | 2009-2009 | | 1G400000 & UP | |
| 357 HRZ 630A BOBTAIL RM | 2012-2012 | | 1G300000 & UP | |
| 357 HRZ 630A BOBTAIL RM | 2013-2013 | | 1G300000 & UP | |
| 357 HRZ 630V BOBTAIL RM | 2012-2012 | | 1G300000 & UP | |
| 357 HRZ 630V BOBTAIL RM | 2013-2013 | | 1G300000 & UP | |
| 357 MAG BRAVO 4V | 2008-2008 | | 1G400000 & UP | |
| 357 MAG BRAVO 4V | 2009-2009 | | 1G400000 & UP | |
| 377 MAG MPI BRAVO | N/A | | 1A300000 THRU 1A611927 | |
| 377 MAG MPI BRAVO | N/A | | 1A611928 THRU 1A623184 | |
| 377 MAG MPI BRAVO | N/A | | 1A623185 & UP | |
| 383 MAG BRAVO 4V | 2008-2008 | | 1G480748 & UP | |
| 383 MAG BRAVO 4V | 2009-2009 | | 1G480748 & UP | |
| 383 MAG INBOARD 4V | 2011-2011 | | 1G400000 & UP | |
| 383 MAG STROKER | 2008-2008 | | 1G400000 & UP | |
| 383 MAG STROKER BRAVO | 2008-2008 | | 1G400000 & UP | |
| 383 MAG STROKER INBOARD | 2009-2009 | | 1G300000 & UP | |
| 383 STROKER SCORPION | 2007-2007 | | 1G300000 & UP | |
| 385 PERFORMANCE TUNED | 2012-2012 | | 1G400000 & UP | |
| 5.0L CARB ALPHA/BRAVO | N/A | | 0W300010 THRU 0W309999 | |
| 5.0L CARB ALPHA/BRAVO | N/A | | 0W310000 THRU 0W649999 | |
| 5.0L CARB ALPHA/BRAVO | N/A | | 0W650000 & UP | |
| 5.0L CARB ALPHA/BRAVO | N/A | | 0M600000 THRU 0W300009 | |
| 5.0L MPI ALPHA/BRAVO | N/A | | 0W060000 THRU 0W309999 | |
| 5.0L MPI ALPHA/BRAVO | N/A | | 0W310000 THRU 0W649999 | |
| 5.0L MPI ALPHA/BRAVO | N/A | | 0W650000 THRU 1A299999 | |
| 5.0L MPI ALPHA/BRAVO | N/A | | 1A300000 THRU 1A611927 | |
| 5.0L MPI ALPHA/BRAVO | N/A | | 1A611928 THRU 1A623184 | |
| 5.0L MPI ALPHA/BRAVO | N/A | | 1A623185 & UP | |
| 5.0L MPI ALPHA/BRAVO | N/A | | 0M300000 THRU 0M599999 | |
| 5.0L MPI ALPHA/BRAVO | N/A | | 0M600000 THRU 0W059999 | |
| 5.7L CARB ALPHA/BRAVO | N/A | | 0W300755 THRU 0W309999 | |
| 5.7L CARB ALPHA/BRAVO | N/A | | 0W310000 THRU 0W649999 | |
| 5.7L CARB ALPHA/BRAVO | N/A | | 0W650000 & UP | |
| 5.7L CARB ALPHA/BRAVO | N/A | | 0M600000 THRU 0W300754 | |
| 5.7L CARB MIE | N/A | | 0W090900 THRU 0W689999 | |
| 5.7L CARB MIE | N/A | | 0W690000 & UP | |
| 5.7L CARB MIE | N/A | | 0L002003 THRU 0M316999 | |
| 5.7L CARB MIE | N/A | | 0M317000 THRU 0W090899 | |
| 5.7L CARB SKI | N/A | | 0W090900 THRU 0W689999 | |
| 5.7L CARB SKI | N/A | | 0W694844 & UP | |
| 5.7L CARB SKI | N/A | | 0M317000 THRU 0W090899 | |
| 5.7L MPI HORIZON MIE | N/A | | 1A090000 THRU 1A092168 | |
| 5.7L MPI HORIZON MIE | N/A | | 1A092169 & UP | |
| 5.7L MPI MIE | N/A | | 1A090000 THRU 1A092168 | |
| 5.7L MPI MIE | N/A | | 1A092169 & UP | |
| 5.7L MPI SKI | N/A | | 1A090000 & UP | |
| 5.7L MPI TOWSPORT WITH GEN III | N/A | | 1A091881 & UP | |
| 6.2L MPI HORIZON MIE | N/A | | 1A090000 THRU 1A092168 | |
| 6.2L MPI HORIZON MIE | N/A | | 1A092169 & UP | |
| 6.2L MPI MIE | N/A | | 1A090000 THRU 1A092168 | |
| 6.2L MPI MIE | N/A | | 1A092169 & UP | |
| BLACK SCORPION 350 MAG MPI | N/A | | 0W690000 THRU 0W698432 | |
| BLACK SCORPION 350 MAG MPI | N/A | | 0M391600 THRU 0W689999 | |
| BLACK SCORPION MX MPI | N/A | | 0W690000 THRU 0W698432 | |
| BLACK SCORPION MX MPI | N/A | | 0M391750 THRU 0W689999 | |
| MX 6.2L MPI BRAVO | N/A | | 0W060000 THRU 0W309999 | |
| MX 6.2L MPI BRAVO | N/A | | 0W310000 THRU 0W649999 | |
| MX 6.2L MPI BRAVO | N/A | | 0W650000 THRU 1A299999 | |
| MX 6.2L MPI BRAVO | N/A | | 0L680003 THRU 0M299999 | |
| MX 6.2L MPI BRAVO | N/A | | 0M300000 THRU 0M599999 | |
| MX 6.2L MPI BRAVO | N/A | | 0M600000 THRU 0W059999 | |
| MX 6.2L MPI HORIZON BRAVO | N/A | | 0W060000 THRU 0W309999 | |
| MX 6.2L MPI HORIZON BRAVO | N/A | | 0W310000 THRU 0W649999 | |
| MX 6.2L MPI HORIZON BRAVO | N/A | | 0W650000 THRU 1A299999 | |
| MX 6.2L MPI HORIZON BRAVO | N/A | | 0M300000 THRU 0M599999 | |
| MX 6.2L MPI HORIZON BRAVO | N/A | | 0M600000 THRU 0W059999 | |
| MX 6.2L MPI HORIZON MIE | N/A | | 0W390000 THRU 0W689999 | |
| MX 6.2L MPI HORIZON MIE | N/A | | 0W690000 THRU 1A089999 | |
| MX 6.2L MPI HORIZON MIE | N/A | | 0M310000 THRU 0M316999 | |
| MX 6.2L MPI HORIZON MIE | N/A | | 0M317000 THRU 0M398394 | |
| MX 6.2L MPI HORIZON MIE | N/A | | 0M398395 THRU 0W389999 | |
| MX 6.2L MPI MIE | N/A | | 0W390000 THRU 0W689999 | |
| MX 6.2L MPI MIE | N/A | | 0W690000 THRU 1A089999 | |
| MX 6.2L MPI MIE | N/A | | 0L302200 THRU 0M299999 | |
| MX 6.2L MPI MIE | N/A | | 0M310000 THRU 0M316999 |
| MX 6.2L MPI MIE | N/A | | 0M317000 THRU 0M398394 | |
| MX 6.2L MPI MIE | N/A | | 0M398395 THRU 0W389999 | |
| MX 6.2L MPI SKI | N/A | | 0M317000 THRU 0W689999 | |
| SCORPION 350 | N/A | | 0W698433 & UP | |
| SCORPION 377 | N/A | | 0W698433 & UP |
